Codo De Acero
| Codo de 45 Grados | Codo de 90 grados | Codo de 180 grados |
 |
 |
 |
| Codo de 45 Grados | Codo de 90 grados | Codo de 180 grados |
|
|
|
1. Materiales:
Acero al carbono: ASTM A234 WPB WPC A105 A106 A53 A283-D API5LB A671-CC-70 A515-50 A135-A A179-C, etc.
Acero de baja aleación: ASTM / ASME SA 234 WP91, WP11, WP22, WP9
Acero al carbono a baja temperatura: ASTM / ASME SA420 WPL3-WPL 6
Acero dúplex y súper dúplex: ASTM / ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550
Acero inoxidable: ASTM / ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM / ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM / ASME A403 WP 321, WP 321H ASTM / ASME A403 WP 347, WP 347H
Aleación de acero: A335-P1, P2, P5, P11, P12, P22, P91, P92, A369-FP1, P2 A250-T1 A209-T1 A213-T2, T9, T12 A199-T11, T22
Acero ferrítico de alta resistencia: ASTM / ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70
Titanio: ASTM / ASME SB337 Grado 1, Grado 2, Grado 11, Grado 12
Con Ni Aleación: ASTM / ASME SB 466 UNS C70600 Cu / Ni 90 / 10
Aleación de níquel:
ASTM / ASME SB 366 Aleación 200 / UNS N02200, Aleación 800HT / Incoloy 800HT / UNS N08811, Aleación 400 / Monel 400 / UNS N04400, F904L / UNS N08904, Aleación 800 / Incoloy 800 / UNS N08800, Aleación C-2000 / UNS N06200, Aleación 925 / Incoloy 925 / UNS N09925, Aleación C-22 / UNS N06022, Aleación 201 / UNS N02201, Aleación C-276 / Hastelloy C-276 / UNS N10276, Aleación 625 / UNS N06625, Nimonic 80A / Aleación de níquel 80A / UNS N07080, Aleación K-500 / Monel K-500, Aleación 20 / UNS N08020, Aleación 800H / Incoloy 800H / UNS N08810, Aleación 600 / Inconel 600
1. Materiales:
Acero al carbono: ASTM A234 WPB WPC A105 A106 A53 A283-D API5LB A671-CC-70 A515-50 A135-A A179-C, etc.
Acero de baja aleación: ASTM / ASME SA 234 WP91, WP11, WP22, WP9
Acero al carbono a baja temperatura: ASTM / ASME SA420 WPL3-WPL 6
Acero dúplex y súper dúplex: ASTM / ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550
Acero inoxidable: ASTM / ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM / ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM / ASME A403 WP 321, WP 321H ASTM / ASME A403 WP 347, WP 347H
Aleación de acero: A335-P1, P2, P5, P11, P12, P22, P91, P92, A369-FP1, P2 A250-T1 A209-T1 A213-T2, T9, T12 A199-T11, T22
Acero ferrítico de alta resistencia: ASTM / ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70
Titanio: ASTM / ASME SB337 Grado 1, Grado 2, Grado 11, Grado 12
Con Ni Aleación: ASTM / ASME SB 466 UNS C70600 Cu / Ni 90 / 10
Aleación de níquel:
ASTM / ASME SB 366 Aleación 200 / UNS N02200, Aleación 800HT / Incoloy 800HT / UNS N08811, Aleación 400 / Monel 400 / UNS N04400, F904L / UNS N08904, Aleación 800 / Incoloy 800 / UNS N08800, Aleación C-2000 / UNS N06200, Aleación 925 / Incoloy 925 / UNS N09925, Aleación C-22 / UNS N06022, Aleación 201 / UNS N02201, Aleación C-276 / Hastelloy C-276 / UNS N10276, Aleación 625 / UNS N06625, Nimonic 80A / Aleación de níquel 80A / UNS N07080, Aleación K-500 / Monel K-500, Aleación 20 / UNS N08020, Aleación 800H / Incoloy 800H / UNS N08810, Aleación 600 / Inconel 600
Para dimensiones detalladas y catálogo de bridas reductoras, póngase en contacto con con nosotros ahora sales@attpipeline.com
2. Estándares:
ASME B16,9, MSS SP-43, DIN 2617, JIS B2313, GB / T12459, GB / T13401, SH3408, SH3409, HG / T21635, HG / T21631
| Diámetro nominal | Diámetro exterior | Centro a final | centro a centro | Volver a la cara | ||||||

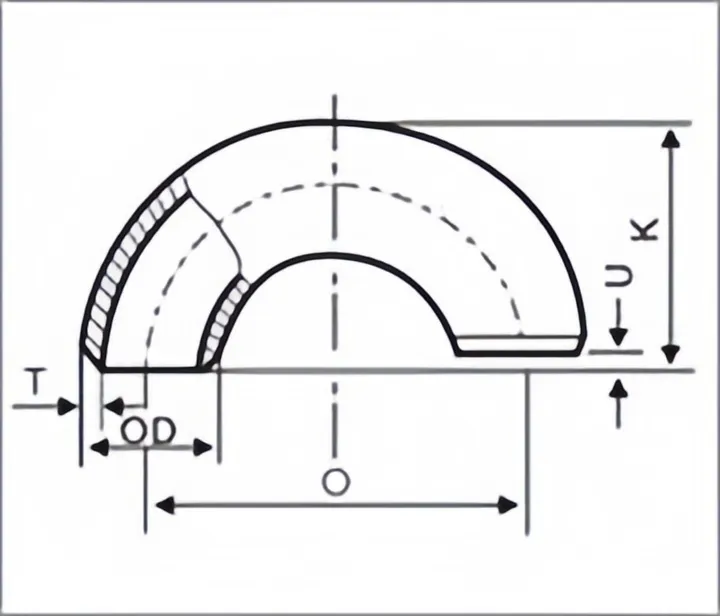

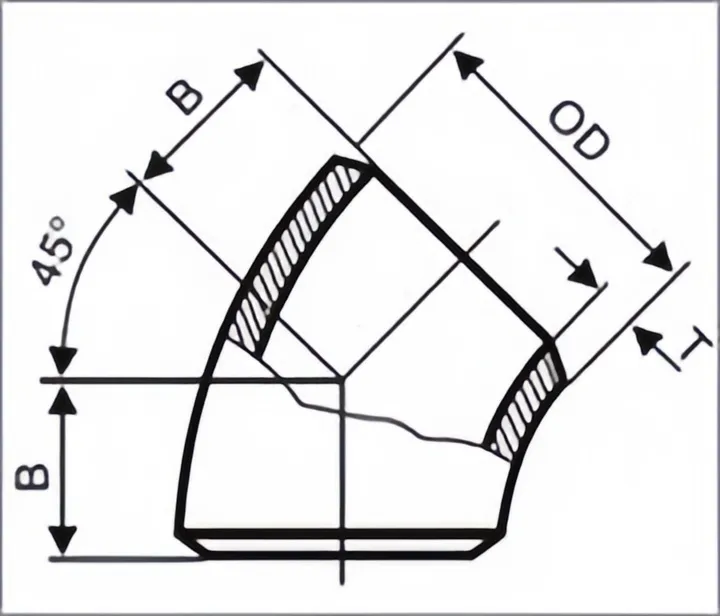

| Codo de 45° | Codo de 90° | Codo de 180° | ||||||||
| B | A | O | k | |||||||
| Serie A | Serie B | Largo | Largo | Corto | Largo | Corto | Largo | Corto | ||
| Radio | Radio | Radio | Radio | Radio | Radio | Radio | ||||
| 15 | 1/2 | 21.3 | 18 | dieciséis | 38 | - | 76 | - | 48 | - |
| 20 | 3/4 | 26,9 | 25 | 19 | 38 | - | 76 | - | 51 | - |
| 25 | 1 | 33.7 | 32 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 1.1/4 | 42.4 | 38 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 1.1/2 | 48.3 | 45 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 60.3 | 57 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| sesenta y cinco | 2.1/2 | 76.1(73) | 76 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 88,9 | 89 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 3.1/2 | 101.6 | - | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 114.3 | 108 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 168.3 | 159 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 219.1 | 219 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 273 | 273 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 323.9 | 325 | 190 | 457 | 305 | 914 | 610 | 619 | 467 |
| 350 | 14 | 355.6 | 377 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | dieciséis | 406.4 | 426 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 457.2 | 478 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 508 | 529 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 559 | - | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 610 | 630 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 660 | - | 406 | 991 | 660 | mil novecientos ochenta y dos | 1320 | - | - |
| 700 | 28 | 711 | 720 | 438 | 1067 | 711 | 2134 | 1422 | - | - |
| 750 | 30 | 762 | - | 470 | 1143 | 762 | 2286 | 1524 | - | - |
| 800 | 32 | 813 | 820 | 502 | 1219 | 813 | 2438 | 1626 | - | - |
| 850 | 34 | 864 | - | 533 | 1295 | 864 | 2590 | 1728 | - | - |
| 900 | 36 | 914 | 920 | 565 | 1372 | 914 | 2744 | 1828 | - | - |
| 950 | 38 | 965 | - | 600 | 1448 | 965 | 2896 | 1930 | - | - |
| 1000 | 40 | 1016 | 1020 | 632 | 1524 | 1016 | 3048 | 2032 | - | - |
| 1050 | 42 | 1067 | - | 660 | 1600 | 1067 | 3200 | 2134 | - | - |
| 1100 | 44 | 1118 | 1120 | 695 | 1676 | 1118 | 3352 | 2236 | - | - |
| 1150 | 46 | 1168 | - | 727 | 1753 | 1168 | 3506 | 2336 | - | - |
| 1200 | 48 | 1220 | 1220 | 759 | 1829 | 1219 | 3658 | 2440 | - | - |
Nota:Las dimensiones cumplen con los estándares GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T05010.
